Introduction to Food Can Sizes

Regarding food packaging, food cans are among the most widely used forms of food storage packaging, particularly for items such as vegetables, beans, and beverages. Knowing the various types of metal food cans is important for manufacturers, suppliers, and even home cooks who want to make informed choices. The cans have certain dimensions, weights, and volumes, and are usually denoted by a code that marks the size. Do you ever question the things that you wonder about, such as how many cups are in a number 10 can or how to change different sizes when converting recipes? You are not alone.

The variety of types of cans that exist today can be confusing; however, once the relationship between the first digit, third digit, and how they relate to the diameter and the height of the can is better understood, things become a lot easier to understand. All the crucial information about the sizes of food cans, both the most popular and the least known, will be revealed in the following sections, and you will never be unprepared when it comes to selecting the right can.

Understanding Can Size Codes and Dimensions

The size of cans used in the canned food industry, particularly in North America, is coded in a standard coding system that indicates the diameter and the height of the can. This coding will assist in consistency in the manufacturing, packaging, and distribution. The most common one is the #10 can that is widely used and contains approximately 12 cups or 6 lbs of food, depending on what it carries. It is also a staple in commercial kitchens where they serve mass quantities of tomatoes, beans, or sauces because of its high capacity and efficiency.

The can code does not have to be as simple as it may sound. The first figure tends to be the diameter in inches, and the next two figures the height in sixteenth of an inch. A can size with a label reading 303 x 406, then, is 3 3/16 inches wide and 4 6/16 inches (or 4.375 inches) tall. Such a degree of accuracy is vital, particularly in large operations where slight variation in the size of cans can be significant to the cost, inventory planning, and portion control.

Material-wise, the majority of the cans are manufactured using tin-plated steel, which is tough enough to withstand the pressure of the processing and keep the contents safe over the long term. The corrosion resistance and maintenance of food flavors are achieved through an internal coating, often BPA-free. Many canned foods can be stored effectively between 2 and 5 years, which makes them very safe and convenient to institutional buyers and foodservice operators.

Knowledge of can sizes is not only a technical issue; it has direct effects on operational efficiency, food safety, and customer satisfaction. Being familiar with the contents of a #10 can or even what a 307×512 code means can spell the difference between efficient production and an expensive loss.

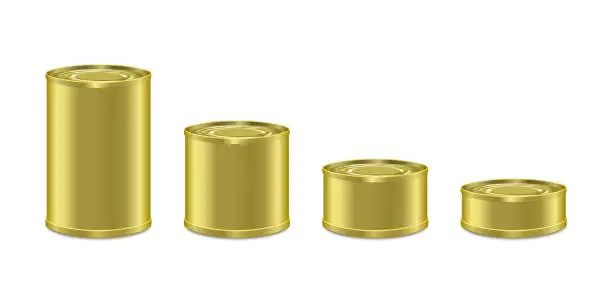

Complete Food Can Sizes Chart

The size codes common in the food canning industry, #1, #2.5, #10, 300, and 303, are canned food dimensions that are standardized. The codes are very common in the food manufacturing, packaging, and labeling business and are a fundamental guide in determining the volume and packaging requirements in the industry.

The most common codes used in can sizes are shown in the chart below, the volume, size, and common contents of the specific size:

Notes:

• Volume is in terms of fluid ounces and can vary with net weight depending on the density of the product.
• The dimensions are indicated in inches: diameter x height.
• The code, such as 300 and 303, indicates the size of the can in 1/16 of an inch. As an example, 303 = 3 3/16 inches in diameter.
• The cans per carton (Case Pack) may differ slightly by supplier or pack configuration.
• When an exact compatibility is necessary (e.g., can ends, seaming equipment), always refer to supplier specifications.

Two-Piece vs. Three-Piece Cans: What’s the Difference?

Metal cans are normally constructed in two ways in the canned food industry: two-piece or three-piece construction. Although both are used with the same aim of preserving and protecting food, they differ structurally, which has a direct effect on performance, cost, and also on their specificity when it comes to product use.

The two-piece can is made out of a single piece of metal that is drawn into the can shape and forms a seamless can with the bottom attached. It is filled, and only the top lid is added. This design does not have side seams that would provide possible corrosion spots and leakage. Due to this, two-piece cans are suitable for liquids and acidic content like soups, juices, and carbonated drinks because they require more integrity due to internal pressure and a long shelf life.

A three-piece can is built in contrast with three parts, namely a flat sheet rolled into a cylinder (with a welded or bonded side seam), and two separate top and bottom ends. This is very common with solid or semi-solid food such as vegetables, beans, and fruits. Even though it adds a side seam, high-level internal coatings are used to safeguard the food and avoid metal contact-particularly during long-term storage.

Both designs are trustworthy, and the selection depends on:

• Product uniformity (liquid or solid)
• Content corrosiveness
• Shelf-life needs
• Methods of production and sealing

Materials Used in Food Cans and Their Benefits

When we talk about “tin cans,” the term is often misleading. In contemporary food packaging, there is a multiplicity of packaging materials, all of which possess varying functional benefits, deployed on the basis of food type, shelf-life considerations, and processing conditions. The following are the most common materials in food can manufacturing and factors that make each of them fit in certain applications:

Steel

The most utilized material in food cans, particularly in North America, is steel. It is very strong and suitable for thermo processing such as retort sterilization. To avoid corrosion, most steel cans have lacquers internally to protect the can against corrosion, particularly where acidic products like tomatoes or beans are used. This set of characteristics of durability, heat resistance, and cost-effectiveness makes steel the industry standard when it comes to canned vegetables, meats, and ready-to-eat meals.

Tin (Tin-Plated Steel)

Although modern cans are often called a tin can, pure tin is hardly used. Rather, tin-plated steel, or steel with a thin coating of tin, is common as a method to enhance corrosion resistance. The tin coating is a protection between food and the metal surface that limits the metallic flavor and the risk of oxidation. Fruits and those foods that are a little bit acidic are best stored in tin-plated cans. The little tin does serve a very significant protective purpose in the increase of shelf life.

Alluminio

Aluminum cans are lightweight, naturally corrosion-resistant, and therefore well suited to beverages, low-acid processed foods, and some contemporary ready-to-eat applications. As opposed to steel, aluminum does not need a heavy internal coating to protect it against corrosion, although a liner of some sort is usually still applied. It is lighter and has the advantage of shipping and sustainability, and is typically used in two-piece can containers.

Paper-Based Composite Cans

These cans are constructed of laminated paperboard lined on the inside (usually aluminum foil or plastic) and have metal or plastic ends. They are not used to sterilize by heat but are popular in packaging such as dry or semi-moist foods as powdered beverages, snack foods, or dried soups. The lightweight feature, printable surface, and environmental friendliness of paper-based cans make it popular, yet this lacks barrier properties and, therefore, is not considered appropriate in high-moisture foods or acidic foods.

How to Choose the Right Food Can Size

Choosing the appropriate can size is not just a question of quantity; it is about efficiency, compatibility in storage, and ensuring waste is kept to a minimum. Standardised can codes, such as #2, #2.5, #10, 300, and 303 used in the food canning industry, are a fine point of reference both to the manufacturer and the bulk purchaser. Then how do you make a good choice?

#2 and #2.5 cans (approximately 14-28 oz) are perfect in a small-scale consumption or retail package. They are commonly used with products such as corn, beans, peas, or cut up fruits- single meals or family-sized portions which do not need to be stored. Such dimensions minimize waste and make it easier to handle by consumers.

In case you need foodservice, catering, or long-term storage, you use #10 cans. They have a capacity of approximately 102-105 ounces (approximately 12-13 cups) each and are the most used when it comes to bulk vegetables, sauces, or institutional purposes. They are economical on a unit weight basis and are specifically made to fit easily into commercial portioning systems.

However, size is not the only thing. Also to be taken into consideration:

• Product density: Foods with high density, such as pumpkin puree, take up smaller space than light foods, such as leafy vegetables, using the same weight.
• Storage and handling: Bigger cans take up more shelf space, need more sturdy can openers, and are also better in a setting where the contents are consumed in bulk.
• Operational fit: The can dimensions should always be compared to your existing sealing/filling equipment. #10 can is not only larger, it may also need an entirely different processing line than #2.5.

The final selection of appropriate food can size is not a simple problem of the number of cups in a #10 can- it is a matter of matching the efficiency of the package to the needs of production, distribution, and consumption. The mismatch can cause not only the costs of the storage space but also shelf stability, the rate of spoilage, and customer satisfaction.

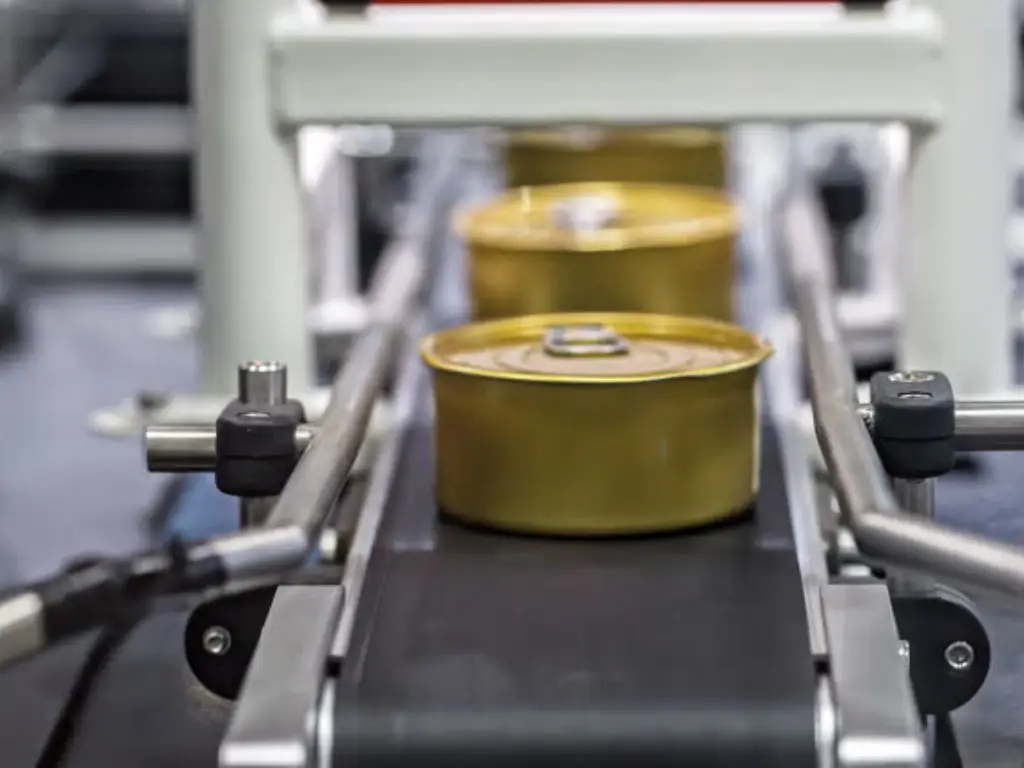

Custom Packaging Equipment for Every Can Size

Knowing can sizes is half the battle; the second step is making sure you have the right equipment to work with those cans correctly, easily, and safely. Be it a standard #2 can or a large volume #10 can, it is vital when selecting machinery that you choose machinery that fits the specific diameter, height, and material of your cans to facilitate your production and achieve your best seal.

That is where Levapack comes in. Levapack, as a professional manufacturer with more than 18 years of experience in can packaging machines, is offering:

• Adjustable sealing and filling machines that can adapt to most sizes and shapes of cans;
• Able to fit in tin cans, aluminum cans, plastic containers, and paper composite cans;
• Versatile options on different food products- liquids, powders, pastes, or solids;
• Modular designs capable of both semi-automatic work and fully automated production lines.

Whether you are looking to ramp up production, automate a small factory, or begin a new line of packaging, we at Levapack can provide the flexible, reliable, and worldwide certified packaging equipment that suits your requirements. Itching to get the ideal can packaging solution for your product? Use our contact form to receive a free consultation and equipment recommendation with Levapack today.

Conclusione

Food can sizes in the United States are important to anybody who deals with the preparation, packaging, or purchasing of food. Starting with the small household size cans, such as #2, to the bulk size of the #10 can, each size has its intended purpose to fit a volume, contents, and the purpose of use. Reading the ability to code and interpret dimensions can improve operations, minimize waste, and make recipes and production consistent. Also, the acquaintance with the material and the way of their construction, two-piece cans or three-piece cans, contributes to further insight into selecting the most appropriate one. As a manufacturer, foodservice operator, or home cook, the correct can size will provide efficiency, safety, and satisfaction on all fronts.
